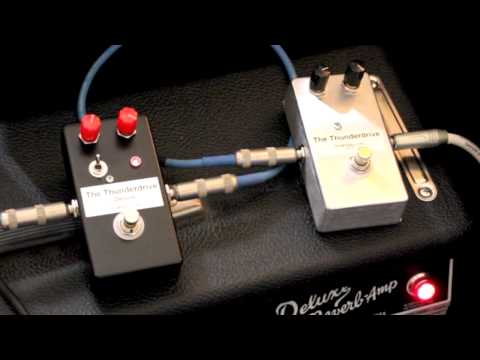

The Thunderdrive

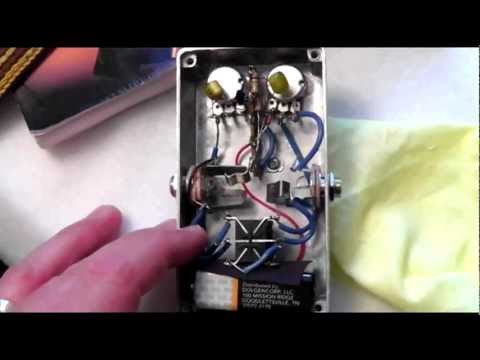

The Thunderdrive is an overdrive pedal kit that will provide a signal boost at low gain settings and it's own distortion at maximum gain settings. You can use it to push your preamp into overdrive or as a source of smooth distortion. Using point to point wiring and easy to follow instructions you can have a working overdrive pedal in a matter of hours. All you need to provide is solder and a soldering iron. Uses 9 volt battery which is not included.

Sound Samples
Product Videos
Questions and Answers
Click each question to see its answers. Looking for general answers about Mod Kits? See our frequently asked questions.
Hi, I noticed the Transistor in the schematic is different from in the instructions. Which one is the kit supposed to come with?
Answers (1)
MichaelT
Staff Member
May 30th, 2018
The transistor for this kit is the 2N5088. The old one has been replaced due to availability.
Verified Answer
Does it come with a 9volt adapter port?
Answers (1)
MichaelT
Staff Member
July 6th, 2018
The pedal will require modifications to install a DC plug.
Verified Answer
When adding a DC jack, is it the same wiring as the Thunder Drive Deluxe pedal?
Answers (1)
MichaelT
Staff Member
September 24th, 2018
Yes, the layout for wiring the DC jack is the same.
Verified Answer
Can the DPDT foot switch be oriented any way? In the diagram the poles are numbered 1-6, and the pedal doesn’t work for me. I want to make sure I didn’t wire it upside down or backwards. Thank you!
Answers (1)
MichaelT
Staff Member
December 3rd, 2018
It isn't polarized so as long as the wiring looks like the instructions it should be good. Send us some photos at info@modkitsdiy.com and we can check it and help with troubleshooting.
Verified Answer
My signal comes through when the pedal isn’t engaged but when I turn it on nothing comes through. Also I get a reading of 4.5 volts at the the transistors collector but I can’t seem to figure out what the issue is.
Answers (1)
MichaelT
Staff Member
January 10th, 2019
Send us an email at info@modkitsdiy.com and we can assist with troubleshooting.
Verified Answer
Has anyone built this for use with a bass?
Answers (0)

No answers yet!

Hi, The 2 caps for the pots sent were different than the ones in the schematics. Is this on purpose now? They are 2 different sizes but the same overall build. One is slightly smaller and reads "104 J" while the bigger reads "ic 50E. MB(or 6/E?)R.022k 250H Any help?
Answers (1)
MichaelT
Staff Member
April 17th, 2019
Send us an email at info@modkitsdiy.com and we can help figure this out!
Verified Answer
Have a question of your own? Ask us here!
