MOD 102+ Guitar Amp Kit

File Downloads:
Instructions (453.24 KB)
Schematic (232.51 KB)
Assembly Drawings (241.19 KB)
Sound Sample (6.5 MB)

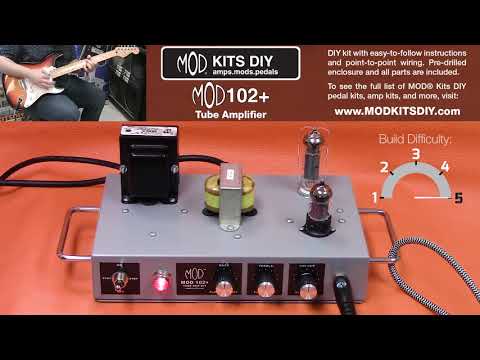

The MOD102+ expands on the same all analog vacuum tube classic American circuit design combined with a British style Class A output section as the Original MOD102 with some much added special “+” features. These special features include a three position progressive toggle switch for off-standby-power and additional push-pull functionality for each control - pull out the bass control knob for “mid boost”, pull out the treble control knob for “bright”, pull out the volume control knob for “turbo”. These new features and a JJ ECC803-S (a long plate 12AX7 known for its complex mid range tones) allow for a wider variety of tones and extra control for the user.

MOD 102+ Guitar Amp Kit Features:

  • All Tube Design (solid-state diodes used only for full-wave rectification)
  • 8W output power into 8 Ω
  • 1 channel
  • Vintage channel controls with push-pull functionality: bass (+mid-boost), treble (+bright) and volume (+turbo)
  • Vintage pilot lamp and screw-on jewel cover for power-on indication
  • Output Impedance: 8 Ω
  • Tubes included: one ECC803 (JJ Electronic brand preamp tube), one EL84 (JJ Electronic brand power tube)
  • Hammond Mfg 269EX power transformer and P-T31 single ended output transformer.
  • Cathode biased class A power tube operation (no bias adjustment needed).
  • Point to point hand wiring using terminal strips
  • Carbon film resistors
  • Metalized polyester coupling caps
  • Pre-punched steel chassis
  • Assembled Kit Weight: 5.55 lbs.
  • Assembled Kit Dimensions: 10" Width x 6" Depth x 5 1/8" Height
